Show images for the sub-categories in the opencart versions 2.3, 3, and 4

This Opencart tip is to show images for the sub-categories in the Opencart version 2.3, but you can make changes as per the following instructions.

Opencart 2.3

Find the following code at catalog\controller\product\category.php

$data['categories'][] = array(
	'name' => $result['name'] . ($this->config->get('config_product_count') ? ' (' . $this->model_catalog_product->getTotalProducts($filter_data) . ')' : ''),
	'href' => $this->url->link('product/category', 'path=' . $this->request->get['path'] . '_' . $result['category_id'] . $url)
);

Replace the code with the below code:

$data['categories'][] = array(
	'name' => $result['name'] . ($this->config->get('config_product_count') ? ' (' . $this->model_catalog_product->getTotalProducts($filter_data) . ')' : ''),
	'image' => $this->model_tool_image->resize($result['image'], 100,100),
	'href' => $this->url->link('product/category', 'path=' . $this->request->get['path'] . '_' . $result['category_id'] . $url)
);

Changed is ‘image’ => $this->model_tool_image->resize($result[‘image’], 100,100), if you have to increase the size then change 100 to other values.

Find the following code at catalog\view\theme\default\template\product\category.tpl

<?php if ($categories) { ?>
<h3><?php echo $text_refine; ?></h3>
<?php if (count($categories) <= 5) { ?>
<div class="row">
  <div class="col-sm-3">
    <ul>
      <?php foreach ($categories as $category) { ?>
      <li><a href="<?php echo $category['href']; ?>"><?php echo $category['name']; ?></a></li>
      <?php } ?>
    </ul>
  </div>
</div>
<?php } else { ?>
<div class="row">
  <?php foreach (array_chunk($categories, ceil(count($categories) / 4)) as $categories) { ?>
  <div class="col-sm-3">
    <ul>
      <?php foreach ($categories as $category) { ?>
      <li><a href="<?php echo $category['href']; ?>"><?php echo $category['name']; ?></a></li>
      <?php } ?>
    </ul>
  </div>
  <?php } ?>
</div>
<?php } ?>
<?php } ?>

Replace with the below code

<?php if ($categories) { ?>
      <h3><?php echo $text_refine; ?></h3>
      <?php if (count($categories) <= 5) { ?>
      <div class="row">
        <div class="col-sm-3">
          <ul>
            <?php foreach ($categories as $category) { ?>
            <li> <a href="<?php echo $category['href']; ?>">
                <?php if($category['image']){ ?>
                <img src="<?php echo $category['image']; ?>" ><br>
                <?php } ?>
                <?php echo $category['name']; ?></a></li>
            <?php } ?>
          </ul>
        </div>
      </div>
      <?php } else { ?>
      <div class="row">
        <?php  foreach (array_chunk($categories, ceil(count($categories) / 4)) as $categories) { ?>
        <div class="col-sm-3">
          <ul>
            <?php  foreach ($categories as $category) { ?>
            <li><a href="<?php echo $category['href']; ?>">
                <?php if($category['image']){ ?>
                <img src="<?php echo $category['image']; ?>" ><br>
                <?php } ?>
                <?php echo $category['name']; ?></a></li>
            <?php } ?>
          </ul>
        </div>
        <?php } ?>
      </div>
      <?php } ?>
<?php } ?>

Extra code added is below and there are two places to add the code:

<?php if($category['image']){ ?>
      <img src="<?php echo $category['image']; ?>" ><br>
<?php } ?>

You are set for the default theme, but if you are using a custom theme then you have to manage as per your theme.

Opencart 3 and Opencart 4

Find the following code at catalog\controller\product\category.php

$data['categories'][] = array(
	'name' => $result['name'] . ($this->config->get('config_product_count') ? ' (' . $this->model_catalog_product->getTotalProducts($filter_data) . ')' : ''),
	'href' => $this->url->link('product/category', 'path=' . $this->request->get['path'] . '_' . $result['category_id'] . $url)
);

Replace the code with the below code:

$data['categories'][] = array(
	'name' => $result['name'] . ($this->config->get('config_product_count') ? ' (' . $this->model_catalog_product->getTotalProducts($filter_data) . ')' : ''),
	'image' => $this->model_tool_image->resize($result['image'], 100,100),
	'href' => $this->url->link('product/category', 'path=' . $this->request->get['path'] . '_' . $result['category_id'] . $url)
);

Changed is ‘image’ => $this->model_tool_image->resize($result[‘image’], 100,100), if you have to increase the size then change 100 to other values.

Find the following code at catalog\view\theme\template\product\category.twig

{% if categories|length <= 5 %}
          <div class="row">
            <div class="col-sm-3">
              <ul>
                {% for category in categories %}
                  <li>
                  <a href="{{ category.href }}">{{ category.name }}</a>
                  </li>
                {% endfor %}
              </ul>
            </div>
          </div>
        {% else %}
          <div class="row row-cols-sm-2 row-cols-lg-4">
            {% for category in categories|batch((categories|length / 4)|round(1, 'ceil')) %}
              <div class="col">
                <ul>
                  {% for child in category %}
                    <li><a href="{{ child.href }}">{{ child.name }}</a></li>
                  {% endfor %}
                </ul>
              </div>
            {% endfor %}
          </div>
          <br/>
        {% endif %}

Replace with the following:

{% if categories|length <= 5 %}
          <div class="row">
            <div class="col-sm-3">
              <ul>
                {% for category in categories %}
                  <li>
                  {% if category.image %}
                    <div>
                      <img src="{{ category.image }}" alt="{{ category.name }}" title="{{ category.name }}" class="img-thumbnail"/>
                    </div>
                  {% endif %}
                  <a href="{{ category.href }}">{{ category.name }}</a>

                  </li>
                {% endfor %}
              </ul>
            </div>
          </div>
{% else %}
          <div class="row row-cols-sm-2 row-cols-lg-4">
            {% for category in categories|batch((categories|length / 4)|round(1, 'ceil')) %}
              <div class="col">
                <ul>
                  {% for child in category %}
                    <li>
                    {% if child.image %}
                      <div>
                        <img src="{{ child.image }}" alt="{{ child.name }}" title="{{ child.name }}" class="img-thumbnail"/>
                      </div>
                    {% endif %}
                    <a href="{{ child.href }}">{{ child.name }}</a>

                    </li>
                  {% endfor %}
                </ul>
              </div>
            {% endfor %}
          </div>
          <br/>
{% endif %}

The following are codes added in the above

{% if category.image %}
          <div>
                      <img src="{{ category.image }}" alt="{{ category.name }}" title="{{ category.name }}" class="img-thumbnail"/>
          </div>
{% endif %}

And

{% if child.image %}
       <div>
               <img src="{{ child.image }}" alt="{{ child.name }}" title="{{ child.name }}" class="img-thumbnail"/>
        </div>
{% endif %}

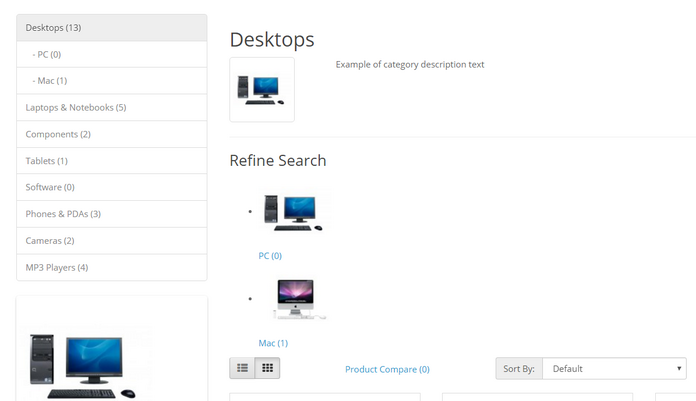

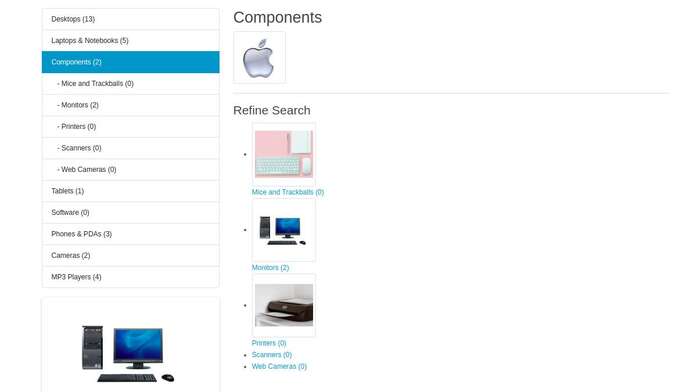

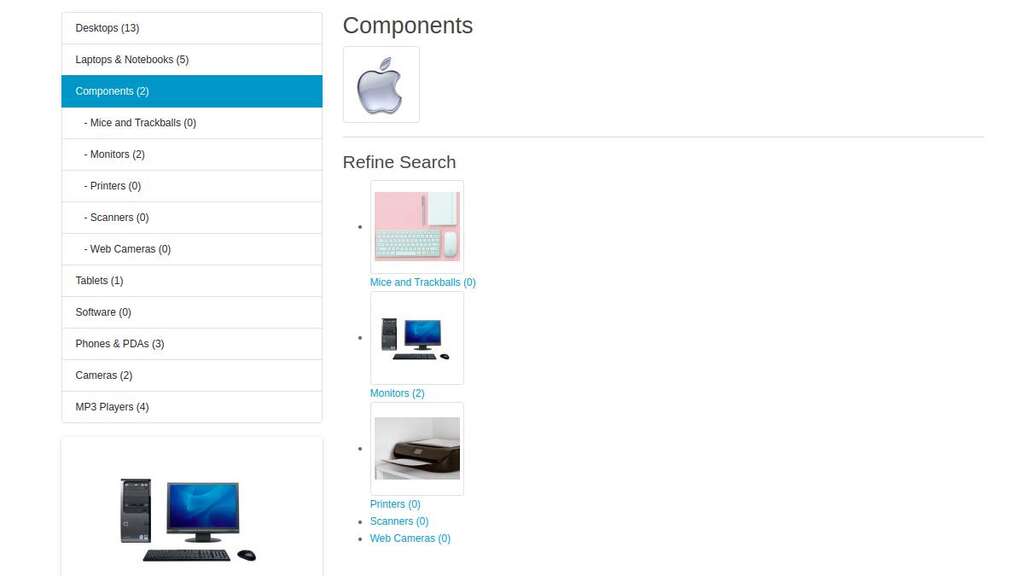

With the above changes now you can see images for the sub-categories, for example:

By changing like above code, you can show images for the sub-categories on the category page of Opencart
